Package |
carton case |
Weight(KG) |
1.7 |
Specification |
Surface treatment |
There’s dust cap on nozzle |
Black coating |
Galvanized |
Overall dimension(MM) |
Outer diameter/D |
Ø88 |
Step height/h |
9 |
Inner diameter/d |
Ø75 |
Assemble height/L |
28.5-33.5(5) |
Thickness/H |
49 |
Eccentric distance/P |
2.6 |
Arc/R |
39 |
Hole diameter/A |
Ø17.5 |
Step outer diameter/Ø |
40 |
|
|

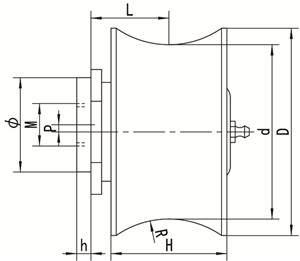

Dimension drawing |
Description |
|
Used in Beijing Yijian 650 construction hoist |
Construction Hoist Parts Guide Roller Mast Section Roller
High quality construction hoist spare parts
High quality GJJ, BAODA material hoist spare parts
